TRS03ILCXiN TRS Model Series
Commercial Freestanding Rack Systems (TRS)
Select a thumbnail to view a larger version

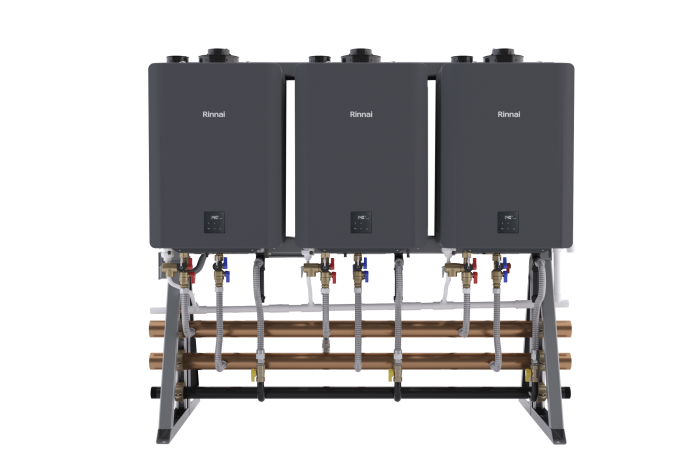

This 3-Unit Freestanding Rack Provides built-in redundancy by banking individual Tankless Water Heaters to ensure your customer’s hot water supply keeps flowing even if a unit is down. Providing 98% Thermal Efficiency and 26:1 Turndown Ratio.
- Uniform Energy Factor (UEF): 0.98
- 97% Thermal Efficiency
- 15,000 BTU (minimum)
597,000 BTU (maximum)
- Indoor
- Warranty
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Product Depth | 17.7 in / (450 mm) |
|---|---|
| Product Height | 57.69 in / (1465 mm) |
| Product Width | 65 in / (1651 mm) |
| Product Weight | 297 lb / (134.7 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor |
| Uniform Energy Factor (UEF) | 0.98 |
| Domestic Hot Water Flow Rate (Maximum) | 27 GPM |
Documentation
-
Sensei TRS With CX Installation Instructions EnglishPDF 4 MBTRS Outdoor Electrical Supplemental Owners Installation and Operation Manual Instructions - TRS Series EnglishPDF 764 KB
-
Commercial Water Heating Solutions Brochure Canadian EnglishPDF 16 MBCommercial Water Heating Solutions Brochure Canadian FrenchPDF 16 MBUS Commercial Water Heating Solutions Brochure EnglishPDF 16 MB
-
Sensei TRS with CX Units Specification sheet EnglishPDF 1 MB
-
100000896 TRS with SENSEI CX Free-Standing Rack (Inline) Submittal FormPDF 2 MB
Warrantyi
| Warranty - Standard for Commercial | 1 year on Rack Components/ Refer to tankless water heater model warranty details |
|---|
iWarranty information is available in the Installation & Owner Manual.
