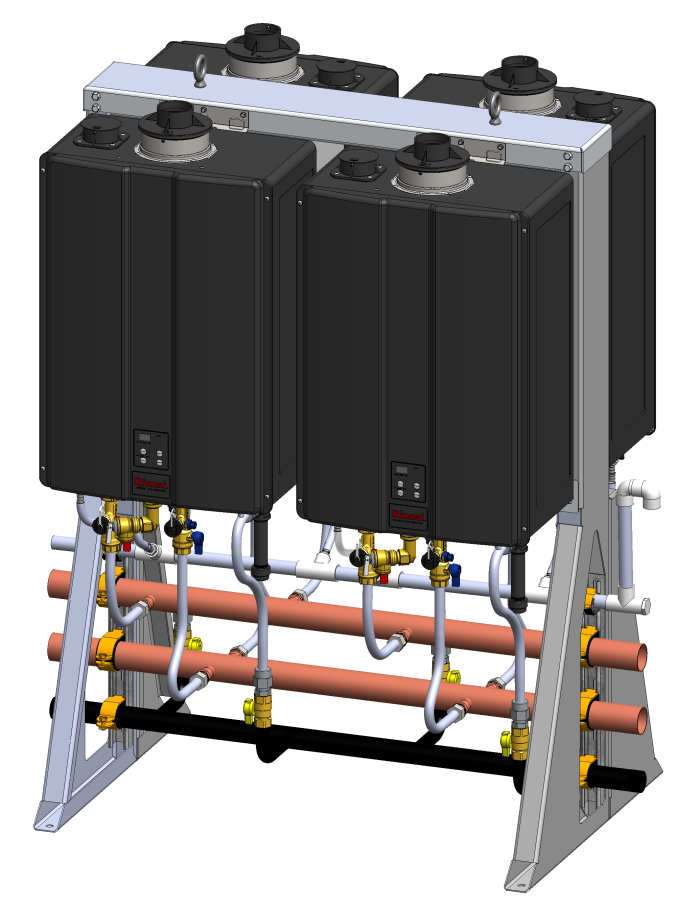

TRS04CUiP TRSCU Model Series
This free standing, four unit system is an ideal replacement for domestic boilers and is great for hospitality, multi-family, industrial, and school applications.
- Uniform Energy Factor (UEF): 0.98
- 97% Thermal Efficiency
- 15,000 BTU (minimum)
796,000 BTU (maximum) - Warranty
-
Supply Connections
Connection Connection Size Gas 1-1/4" MNPT / (32 mm) Cold Inlet 2" Copper Hot Outlet 2" Copper Condensate Drain 3/4" PVC / (19 mm) -
Product Depth 28.59 in / (726 mm) Product Height 57.69 in / (1465 mm) Product Width 47 in / (1194 mm) Product Weight 365 lb / (165.5 kg) Gas Type Propane Gas Recirculation Capable Yes Uniform Energy Factor (UEF) 0.98 Domestic Hot Water Flow Rate (Maximum) 44 GPM / (166.5 l/min) Wi-Fi Capable Yes SCAQMD Approved Ultra Low NOx Warranty information is available in the Installation & Owner Manual.
-
