TRW02CUiN TRWCU Model Series

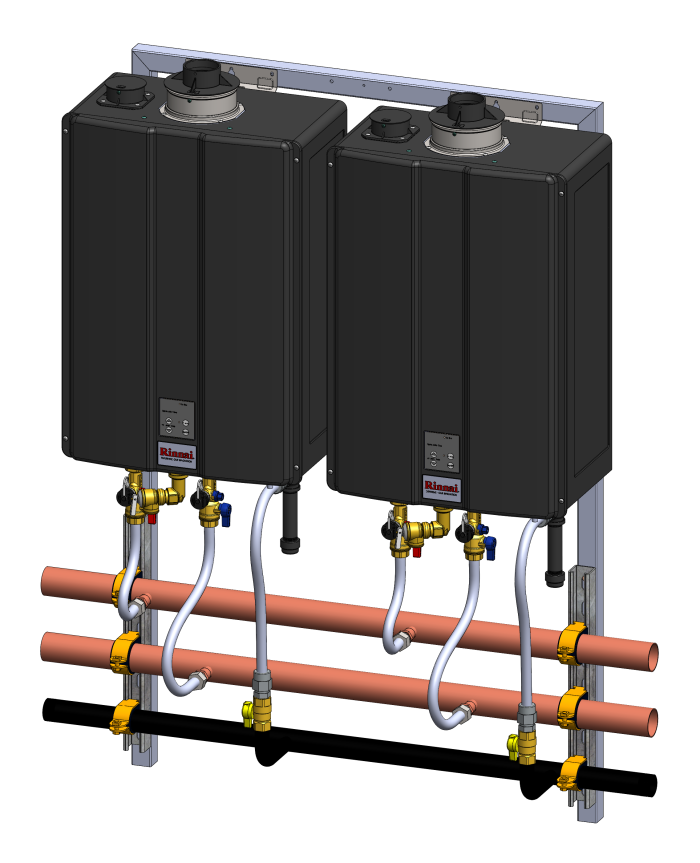

This two unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications.
- Uniform Energy Factor (UEF): 0.98
- 97% Thermal Efficiency
- 15,000 BTU (minimum)
398,000 BTU (maximum) - Warranty
-
Supply Connections
Connection Connection Size Gas 1-1/4" MNPT / (32 mm) Cold Inlet 2" Copper Hot Outlet 2" Copper -
Product Depth 13 in / (330 mm) Product Height 56.67 in / (1439 mm) Product Width 47 in / (1194 mm) Product Weight 170 lb / (77.1 kg) Gas Type Natural Gas Recirculation Capable Yes Uniform Energy Factor (UEF) 0.98 Domestic Hot Water Flow Rate (Maximum) 22 GPM / (83.3 l/min) Wi-Fi Capable Yes SCAQMD Approved Ultra Low NOx Warranty information is available in the Installation & Owner Manual.
-
